NEMA 6-50P Right Angle to Blunt Cut or ROJ

NEMA 6-50P Right AngleToBlunt Cut Or ROJ

While working with high-voltage equipment in a workshop or garage, you should be mindful of what power cords you select. Cords that do not have the correct connector type, cannot provide sufficient current, or lack the necessary jacket for their environment are not just an inconvenience.

This is precisely what makes the NEMA 6-50P right-angle power cord so desirable.

The NEMA 6-50P right-angle cord provides an elegant solution to problems associated with high-voltage equipment, such as welding, plasma cutting, and industrial machines, by combining a low-profile right-angle plug with either a blunt cut or an ROJ (Remove Outer Jacket).

Here is everything you need to know to choose the right cord for your setup.

Why the Right-Angle Design Makes a Real Difference

People tend to ignore the orientation of the plug connection until it becomes problematic. The straight-out plug is easily stepped on, bent, or simply not able to fit into confined spaces. The NEMA 6-50P right-angle plug eliminates all of this because it sits flat against and parallel to the outlet face, resulting in an inline plug exit.

That low-profile exit becomes particularly useful when the machine sits close to the wall, especially if it's housed in an enclosure with very little space to maneuver. This design also helps reduce the strain on the plug body over time.

Pulling on the cable places a strain on the plug body, but because this strain is shared with the receptacle via a right-angle plug, it improves the plug's longevity as well. Such longevity is taken for granted in welding shops.

What Equipment Uses This Cord and Why the NEMA 6-50 Rating Fits

The NEMA 6-50 configuration handles 250V and up to 50 amps, putting it squarely in range for equipment that draws serious power.

Welding is the most common use case. Most MIG, TIG, and stick welders in the 200-amp range require a 240V/50-amp circuit, and the NEMA 6-50P right-angle power cord for welders is the standard connection for that. Besides, most home and light industrial welders in the 140-to-200-amp range require a 240V outlet, making the NEMA 6-50P one of the most widely used plugs in the welding world.

Beyond welding, this configuration is used in plasma cutters, air compressors, large table saws, laser cutters, and Level 2 EV charging equipment. If a machine needs 240V and draws close to 50 amps, there's a good chance it uses a NEMA 6-50P.

The high-voltage NEMA 6-50P right-angle cord from Americord is available in 6/3, 8/3, 10/3, and 12/3 gauge options with SOOW or STOW jacketing. Both jacket types are oil-resistant, stay flexible in cold temperatures, and hold up in outdoor and industrial environments.

Blunt Cut vs. ROJ: Choosing the Right Termination

Perhaps the most useful aspect of the line is the type of cable termination you can choose. While you have the molded NEMA 6-50P right-angle plug at one end, you get to decide whether you want a blunt cut or an ROJ termination at the other end.

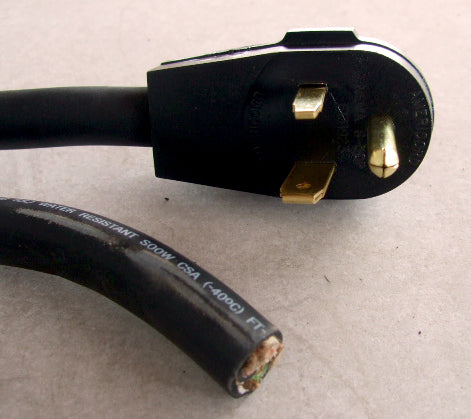

A blunt cut is made to the jacket, with all conductors properly insulated and of equal length. This termination would be ideal for an experienced electrician to wire the cords directly into a panel, junction box, or equipment.

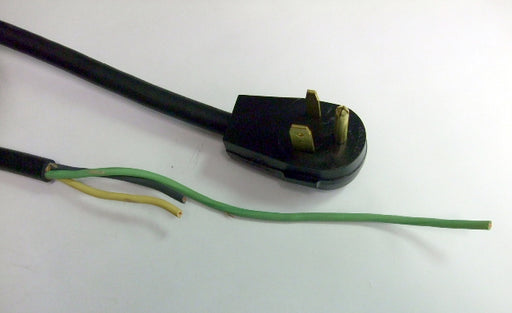

The ROJ termination, however, would be more advanced, with the outer jacket stripped to a specified length, thereby exposing the wires. ROJ terminations are common in mass production in an OEM setting.

Neither option is universally better. The right pick depends on your installation. If you need a custom configuration, the Americord design-a-cord tool lets you set your own length, gauge, and termination before ordering.

How to Choose the Right Length and Gauge

Getting the length right matters beyond just convenience. A cord that's too short puts tension on both connection points. One that's too long adds unnecessary resistance, which is a real concern at higher amperages.

The National Electrical Manufacturers Association recommends using the shortest cord that reaches without strain.

For most workshop welders, lengths between 8 and 12 feet cover the majority of setups. This collection includes 8FT, 9FT, 10FT, and 11FT options, plus a 25FT cord for larger shop floors. If you need a NEMA 6-50P extension cord for a longer run, move to a heavier gauge to keep voltage drop in check. The 6/3 gauge handles the highest loads at distance, 8/3 covers most standard workshop applications, and 10/3 or 12/3 work for lighter loads over shorter runs.

For NEC compliance on wire sizing, the NFPA 70 National Electrical Code is the authoritative reference. All cords in this collection carry UL/CSA approval for commercial and industrial use in the US and Canada.

Bottom Line

The NEMA 6-50P welder power cord is the practical choice for any 240V/50-amp machine, and the right-angle plug makes it even more useful in tight or built-out spaces. With multiple lengths, gauges, and termination options available, this collection covers a wide range of real-world installations. Browse the full selection at Americord's NEMA 6-50P right-angle blunt-cut or ROJ collection.
